Erection Splitter
“ Integrity, Teamwork, Professionalism, Innovation, Excellence ”

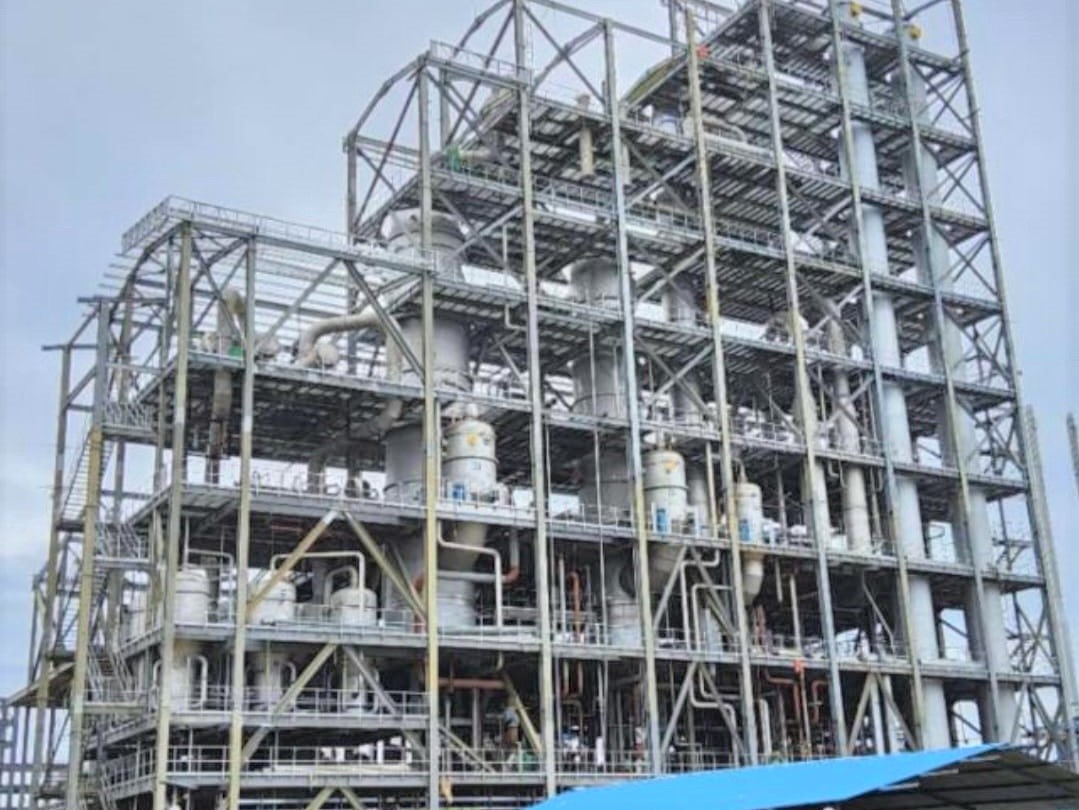

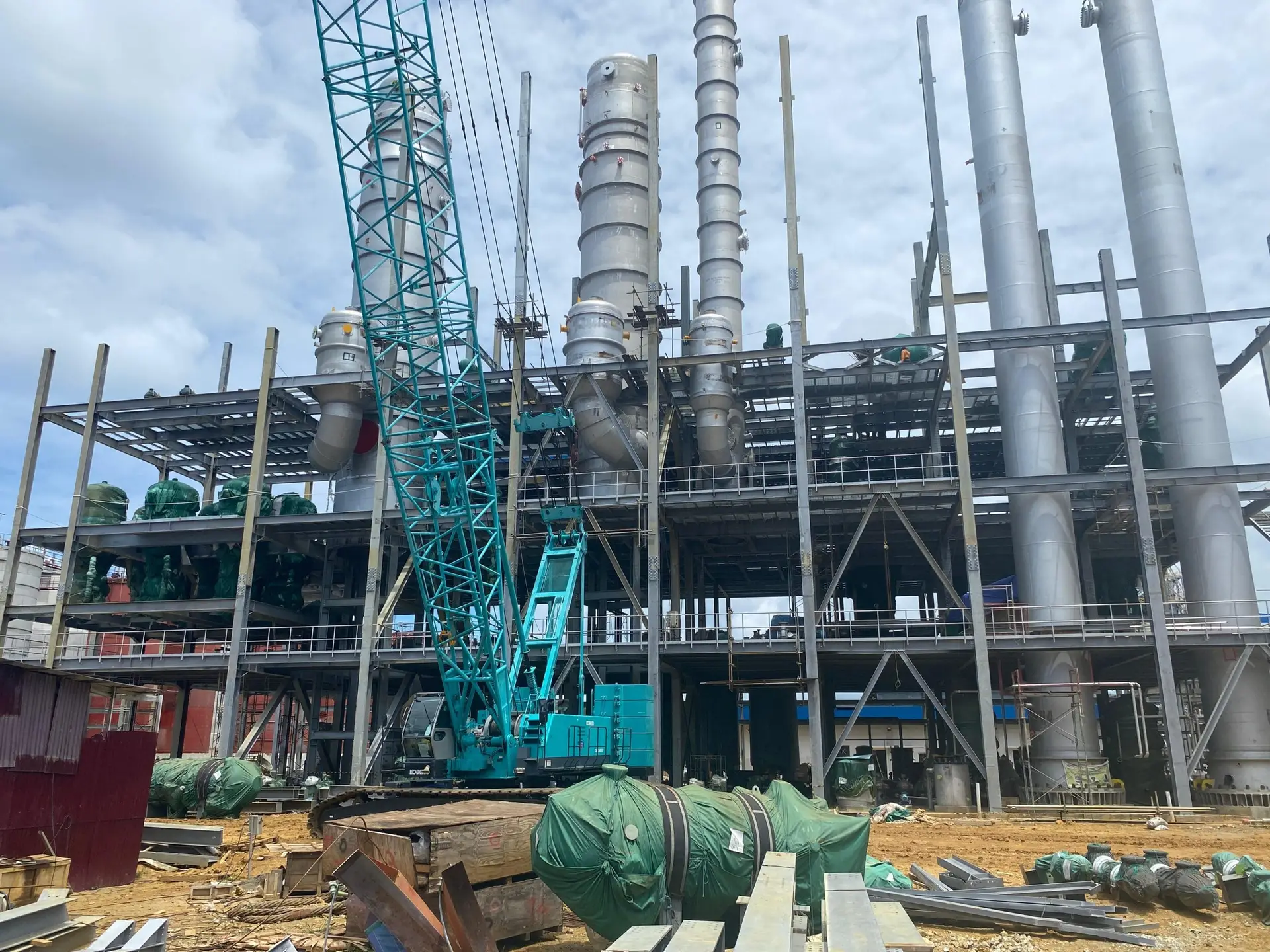

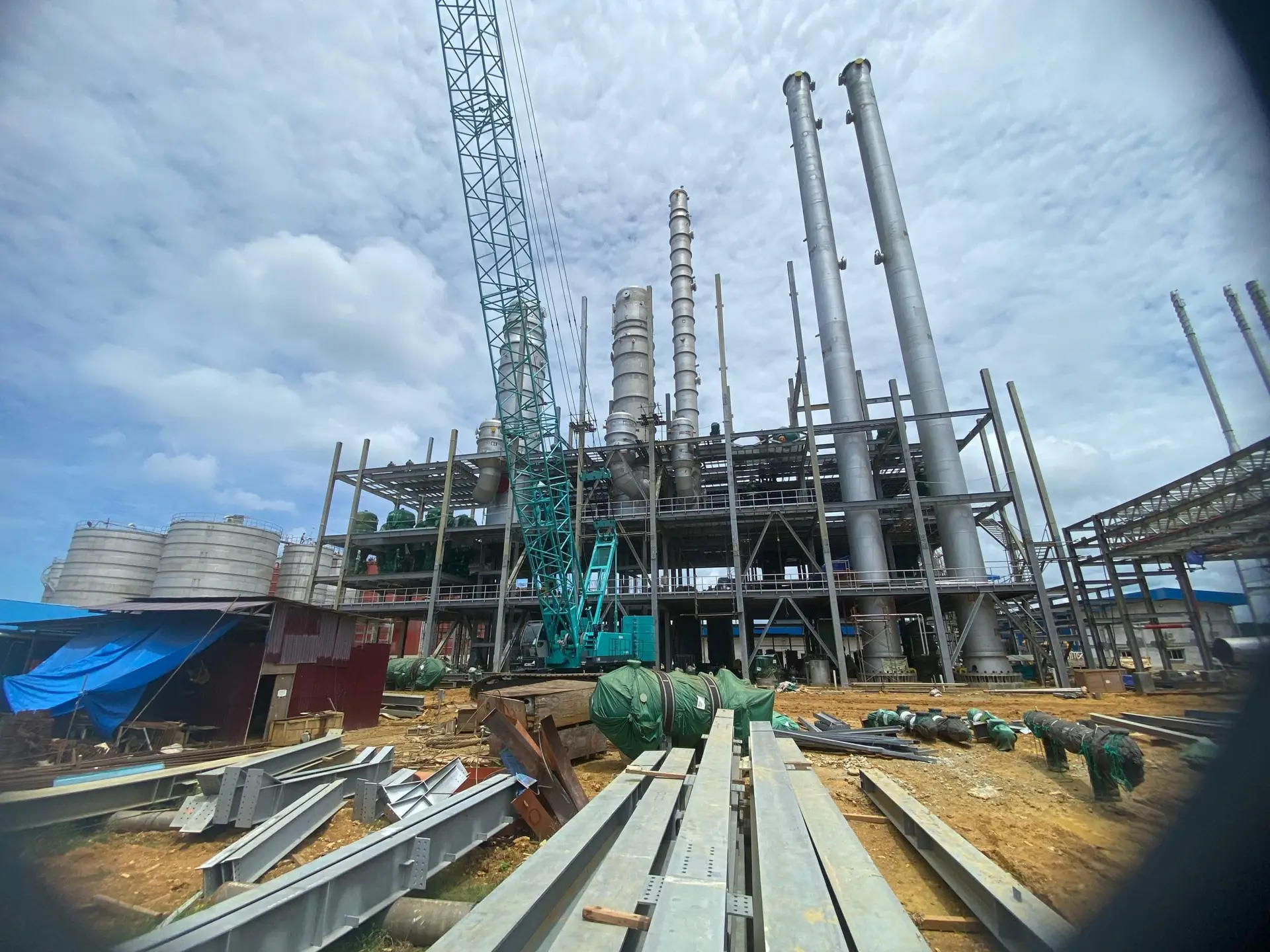

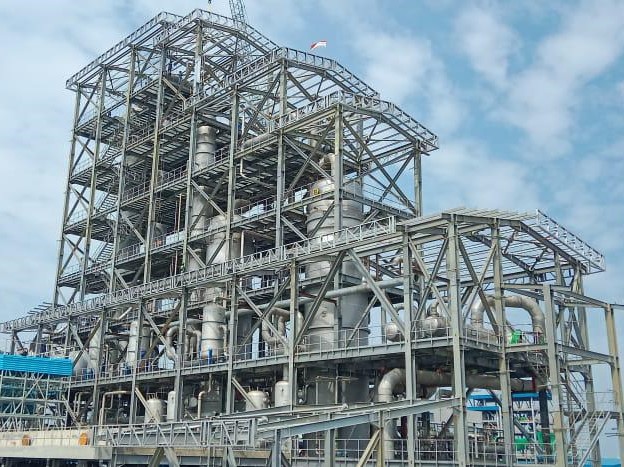

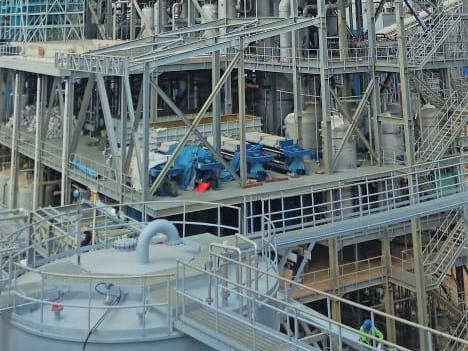

Bukaka’s success in supporting activities in the palm oil sector in creating supporting factory facilities, one of which is the establishment of a splitter in the Oleo chemical plant area. The splitting column is delivered in two pieces and will be assembled at site.
It is one of the core process equipment in oleo chemical plants to split fatty acids and glycerin from oil. The height of the splitter installed is 200 meters with a weight of 5000 tons
Material List
| Radiographic Examination | Full (100%) | |
|---|---|---|
| Corrosion Allowance | Nul | |
| Mat'l Allowable Stress | Shell | 1533.16 Bar |
| Head | 1533.16 Bar | |
| Joint Efficiency | Shell | 1.0 |
| Head | 1.0 | |
| Test Pressure | Hydrostatic | 108.6 Bar (G) AT TOP |
| Pneumatic | - | |
| Design | Pressure | 64 Bar (G) AT TOP + (TOWER TOTALLY FULL OF LIQUID) |
| Temperature | 5/285 ˚C | |
| Operating | Pressure | 55 Bar (G) |
| Temperature | 260 ˚C | |
| Design Code and Specification | PD 5500 : 2021 | |
| Type | Vertical | |
| Fabricated Weight | 187403 kg | |
| Empty Weight | 208889 kg | |
| Operating Weight | 380744 kg | |
| F.W./H.T. Weight | 390733 kg | |
| Fire Proofing | None | |
| Thermal Insulation | 250 mm (BY OTHERS) (DENSITY 120 kg/mᶟ | |
| Painting (for C.S) | See Note : 5 | |
| Capacity | 203.45 mᶟ | |
| Wind Speed | See Note : 6 | |
| Earthquake Factor | See Note : 7 | |
| MDMT | 5 ˚C | |
| MAWP | 64 Bar | |
| MAEWP | N/A | |
| Specific Gravity | 0.85 | |
| Fluid Name | Fatty Acid, Sweet Water | |
| Surface Treatment | Picklad & Passivated (SS) & GRIT BLASTING TO SA 2½ (CS) | |
| Heat Treatment (PWHT) | Yes | |
| Impact Test | No | |
| Construction Category | 1 (Pressure Vessel) | |
| Non-Destructive Test | See Note : 8 | |
